Admin Menu

Provides guidance on the main menus and features accessible with administrator privileges.

DASHBOARD

1. Press and authenticate with the Admin level credential.
   You can check the status and information of the device at DASHBOARD. Alternatively, you can press Enroll Wizard to directly enroll a user.

2. To register a user or set up a device, select the desired menu from the bottom of the dashboard.



Door Control

You can manually open, lock, or unlock the connected door.

Info

• You can control the door only when the device is configured as the master device.

• Use Administrator or Configuration to control the door.

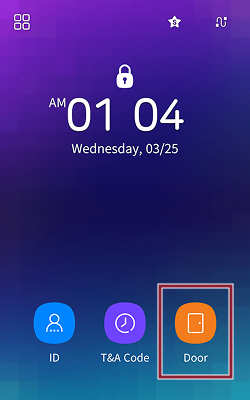

1. Select Door on the main screen.



2. Authenticate using administrator privilege method.

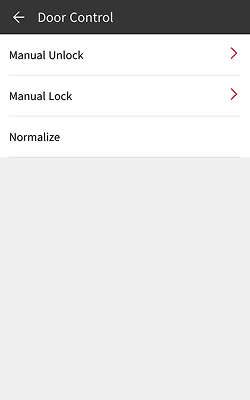

3. Choose the desired door control method.



   • Manual Unlock: Set the time for immediate door opening or to keep the door open.

   • Manual Lock: Set the time for immediate locking or to keep the door locked.

   • Normalize: Cancel manual opening or manual lock hold.

Info

Set the manual open and manual lock-hold times from 1 to 86,400 seconds.
