Getting Started

Provides initial procedures for getting started with the device.

Components

Secure I/O 2

Fixing Screws x2	Wall Bracket x2	120 Ω Resistor	Diode

Info

• Components may vary according to the installation environment.

• When assembling the product with the bracket, you can use the included bracket fixing screw (Star Shaped) instead of the product fixing screw for enhanced security.

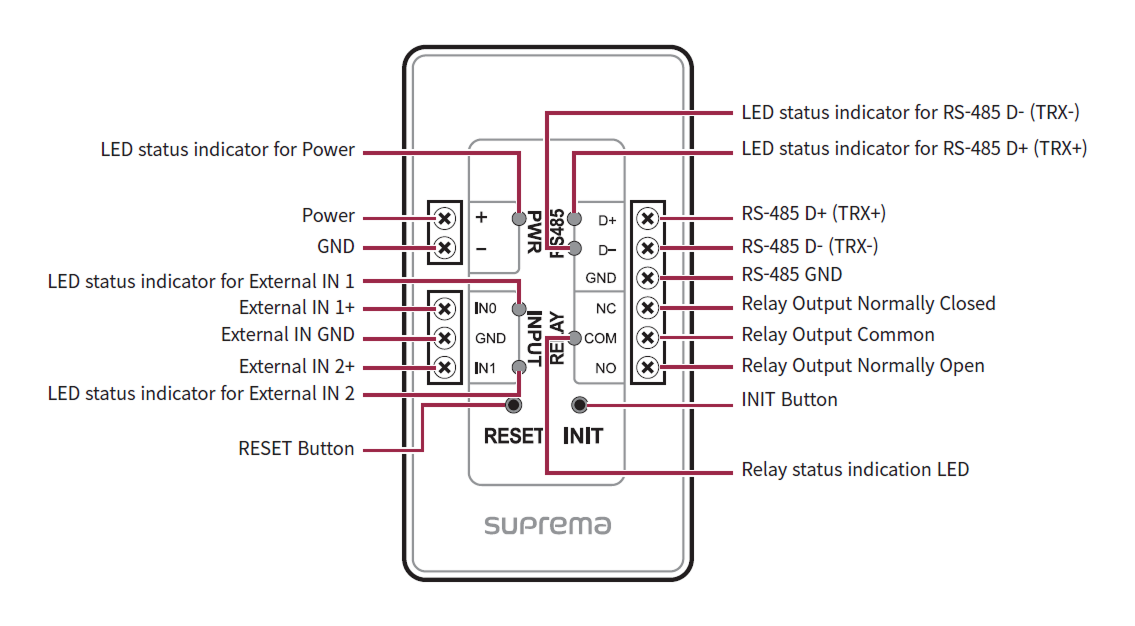

Name and function of each part

Info

• Press the INIT button for more than 2 seconds after initializing the product linked to the device to connect it to another device.

• Press the RESET button to reboot the product.

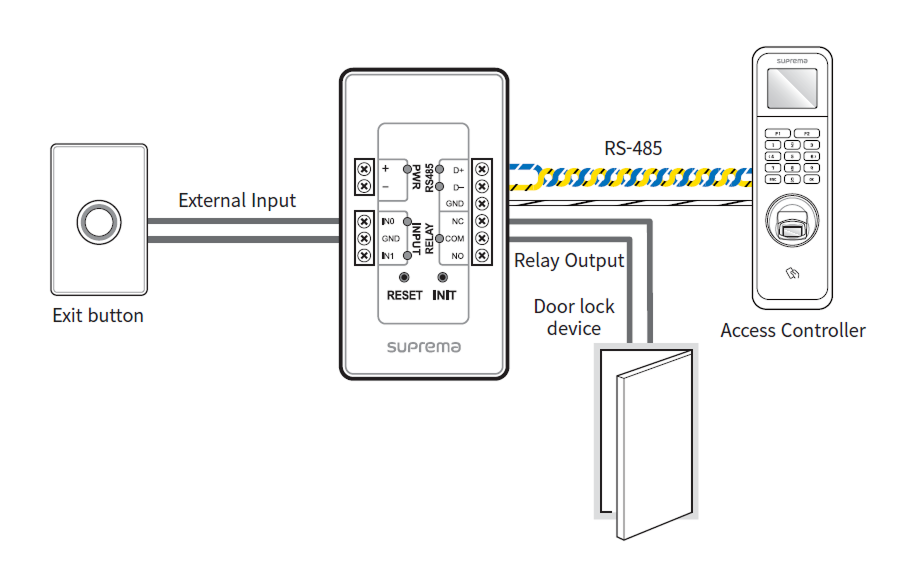

Installation example

This product connects via RS-485 and can be installed in various locations due to its compact size.

It can be installed in conjunction with a junction box or mounted onto an existing wall control box. It can also be installed behind the exit button.
