Manage Registered Doors

Assign access devices to registered doors, configure relays, and set access schedules. Systematically control access for security, fire evacuation, and time and attendance (T&A).

Tip

Watch the following video for a tutorial on registering and managing doors.

View Door List​

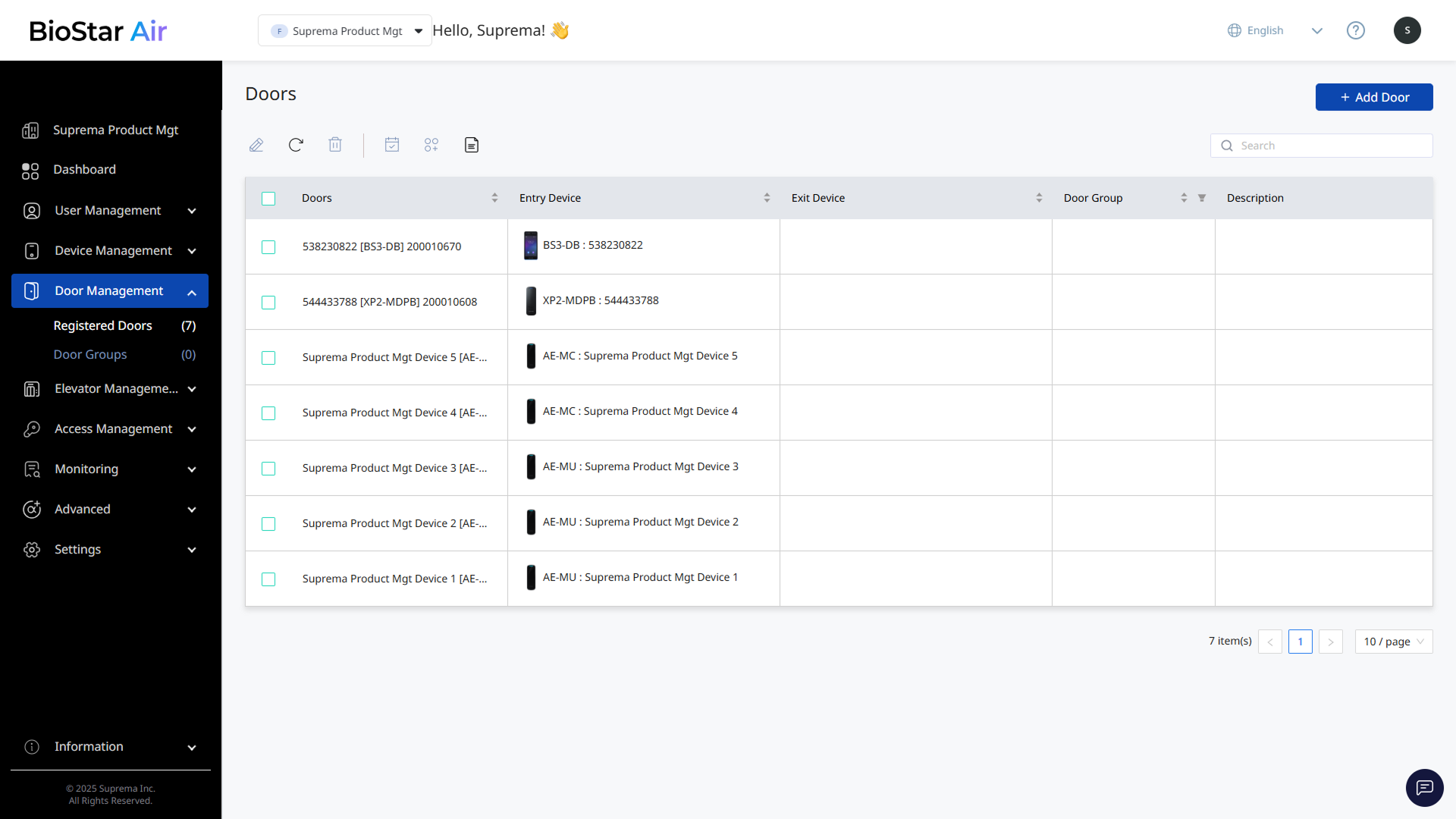

The door list displays all doors registered in BioStar Air at a glance. View key information for each door, such as its name, assigned devices, and group. Click a door in the list to view details and modify settings.

Click Door Management → Registered Doors in the left sidebar to view registered doors.

Door information​

The door list provides the following information.

  • Doors: The name of the door. This is usually assigned automatically during device registration, but administrators can change the door name.

  • Entry Device: Device that authenticates users entering the door.

  • Exit Device: Device that authenticates users exiting the door.

  • Door Group: Name of the group assigned to the door.

  • Description: Description of the door.

  • Camera: Displays camera information linked to the door. Camera column appears only after you enable the Video Management feature at Settings → Site → Additional Features.

Additional features​

When one or more doors are selected in the list, administrators can manage them using the following tools.

  • Edit: Edit door information or change the settings of assigned devices. This option is available only when one door is selected. For more information, see #editingDoors.

  • Refresh: Refresh the door list.

  • Delete: Remove the selected doors from the list.

  • Schedule Settings: Set a schedule for door open and locked states. For more information on managing door schedules, see Manage Door Schedules.

  • Manage Groups: Group the selected doors. For more information on managing door groups, see Manage Door Group.

  • Report: Generate door reports. For more information on generating door reports, see #generatingDoorReports.

Filter​

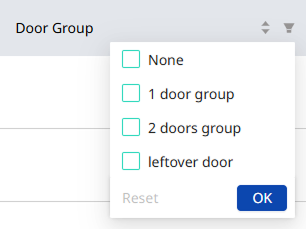

Filter the door list by door group. Click the Door Group column's Filter button and select the desired group. Click OK to show only the doors in the selected group.

Info

To reset the applied filters, click Filter and select Reset.

Add doors​

Add with a device​

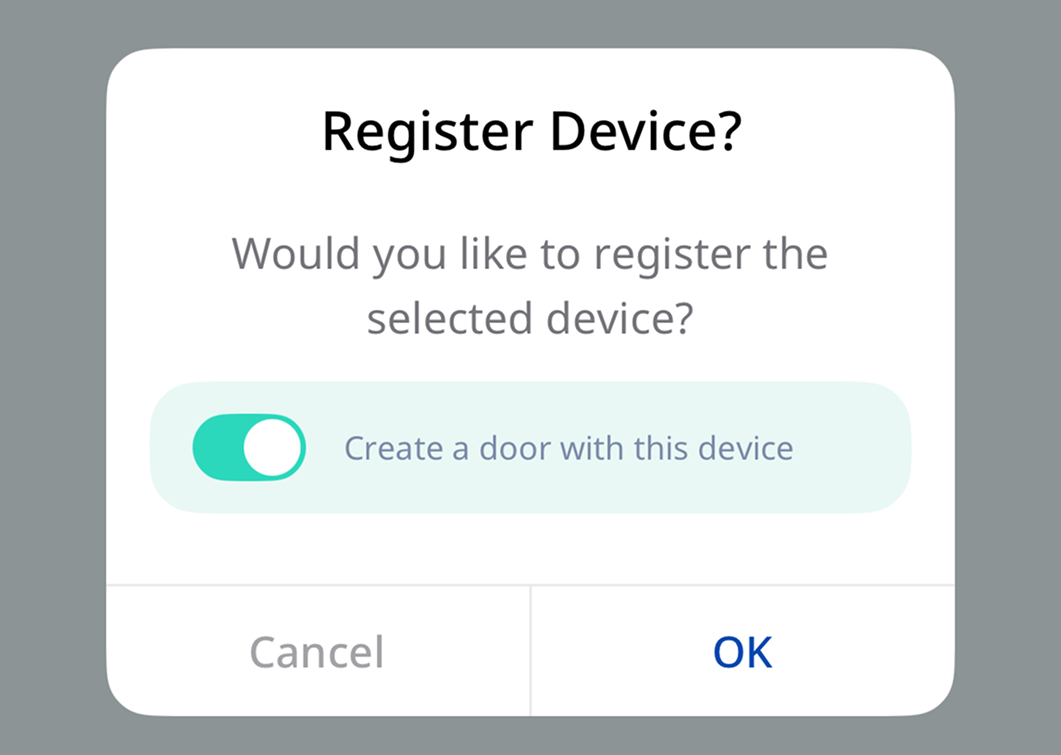

In the final step of device registration in the mobile app, select the Create a door with this device option to create a door. For more information on how to register a device with the mobile app, see Register and Delete Devices.

Add from the web portal​

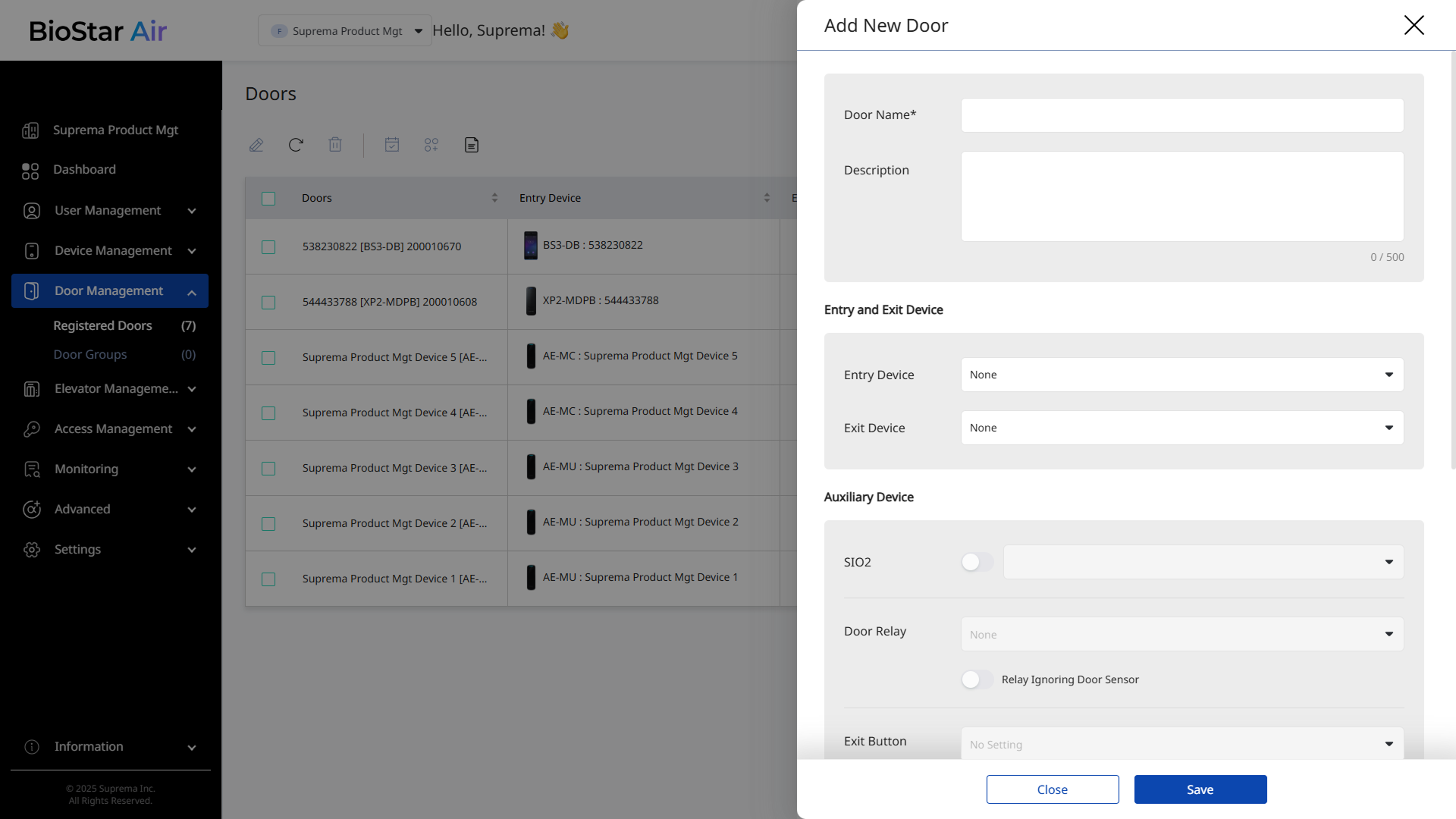

Follow the steps below to add a new door in the BioStar Air portal.

  1. Click Door Management → Registered Doors in the left sidebar.

  2. Click Add New Door at the top right of the screen.

  3. When the Add New Door panel appears, enter Door Name.

  4. Select Entry Device and Exit Device.

  5. Click Save to save and add the door settings.

Rules for assigning devices to doors

  • Each device can be assigned to one door only.

  • If a device is already registered but does not appear in the available device list, check whether it is assigned to another door. If it is assigned to another door, remove it from that door and try again.

Edit doors​

Follow these steps to edit door details and settings.

  1. Click Door Management → Registered Doors in the left sidebar.

  2. Click the door you want to edit in the list. Or select the checkbox to the left of the door and click in the top left sidebar.

  3. When the Edit Door panel appears, edit Door Name and Description.

  4. Select the device for door entry authentication from the Entry and Exit Device section.

    • Entry Device: Select the device that authenticates users entering the door.

    • Exit Device: Select the device that authenticates users exiting the door.

    • Camera: You can connect a CCTV camera for event logs.

    To use the camera, enable the Video Management feature under Settings → Site → Additional Features.

  5. Configure the relay device in the Auxiliary Device section.

    • Door Relay: Select the relay device that controls the door lock.

    • Relay Ignoring Door Sensor: Set the relay to ignore the door sensor.

  6. Configure additional settings.

    • If installed, select the port to set to Exit Button.

    • Select the port to set to Door Sensor.

    • Set how long the door remains open in Open Time. (Default: 3 seconds)

  7. Click Save to apply the changes.

Info

  • We recommend assigning a relay located inside the secure area as Exit Device.

  • Entry Device and Exit Device must be connected to separate networks. In a master–slave configuration, connection over Wiegand or RS-485 is not possible.

  • For more information on configuring the SIO2 secure module, see Configure SIO2 Secure Module.

Generate door reports​

Generate door reports and send them to the administrator's email. A door report provides information about users who accessed through the door.

  1. Click Door Management → Registered Doors in the left sidebar.

  2. Click Report at the top of the door list.

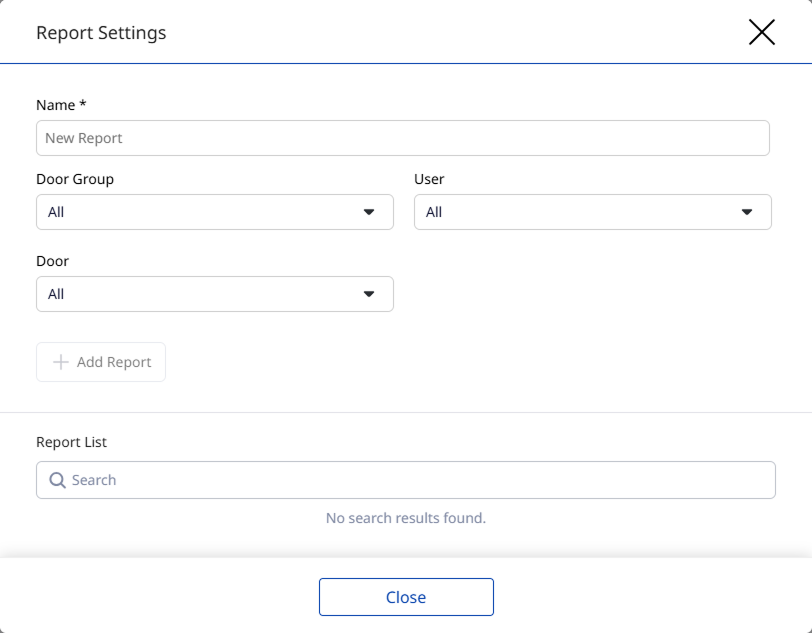

  3. When the Report Settings window appears, enter a report name.

  4. Select the items to include in the report.

  5. Click Add Report to save the report.

  6. A Report List is created and a download link is sent to the administrator's email.

Info

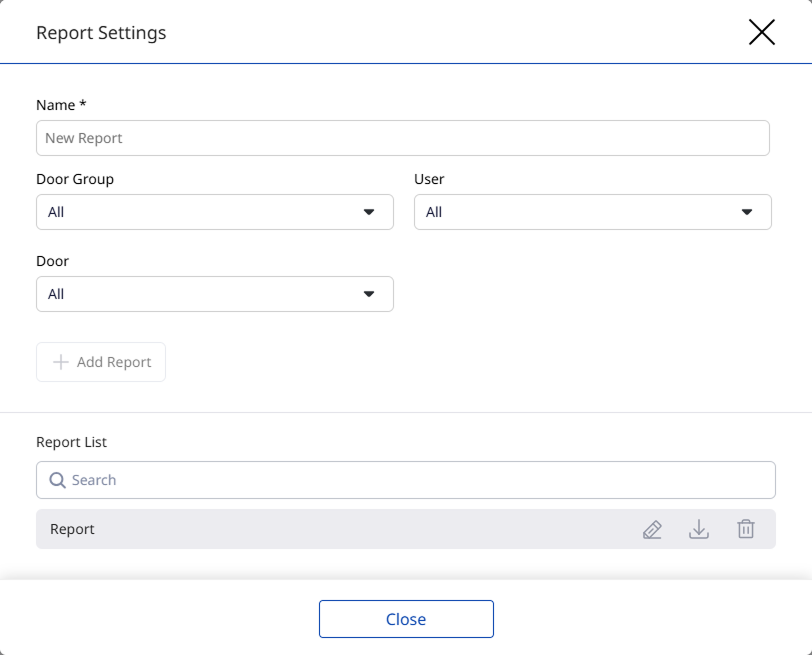

In Report List, search for, edit, download, or delete generated reports.
