Monitor Door Status

Monitor the status of doors connected to BioStar Air in real time. Check whether a door is locked or unlocked and the status of its relay sensor, and lock or unlock it remotely to control access.

Tip

Refer to the following video to watch the video guide on monitoring door status.

Door status monitoring

Web

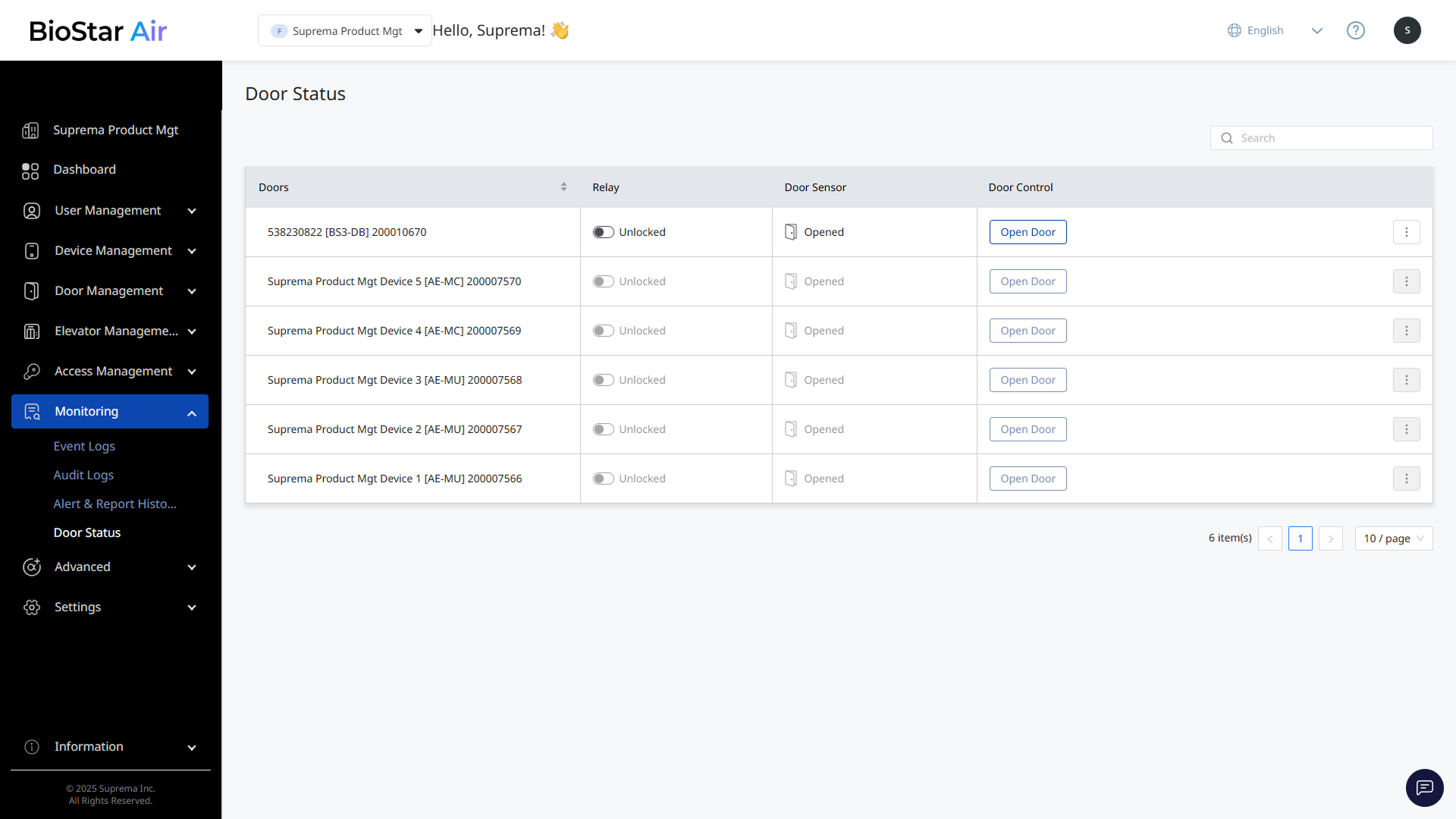

Monitor door status in the BioStar Air web portal. Click Monitoring → Door Status in the left sidebar. View the list of doors registered to BioStar Air.

Mobile

Monitor door status using the BioStar Air app on a mobile device.

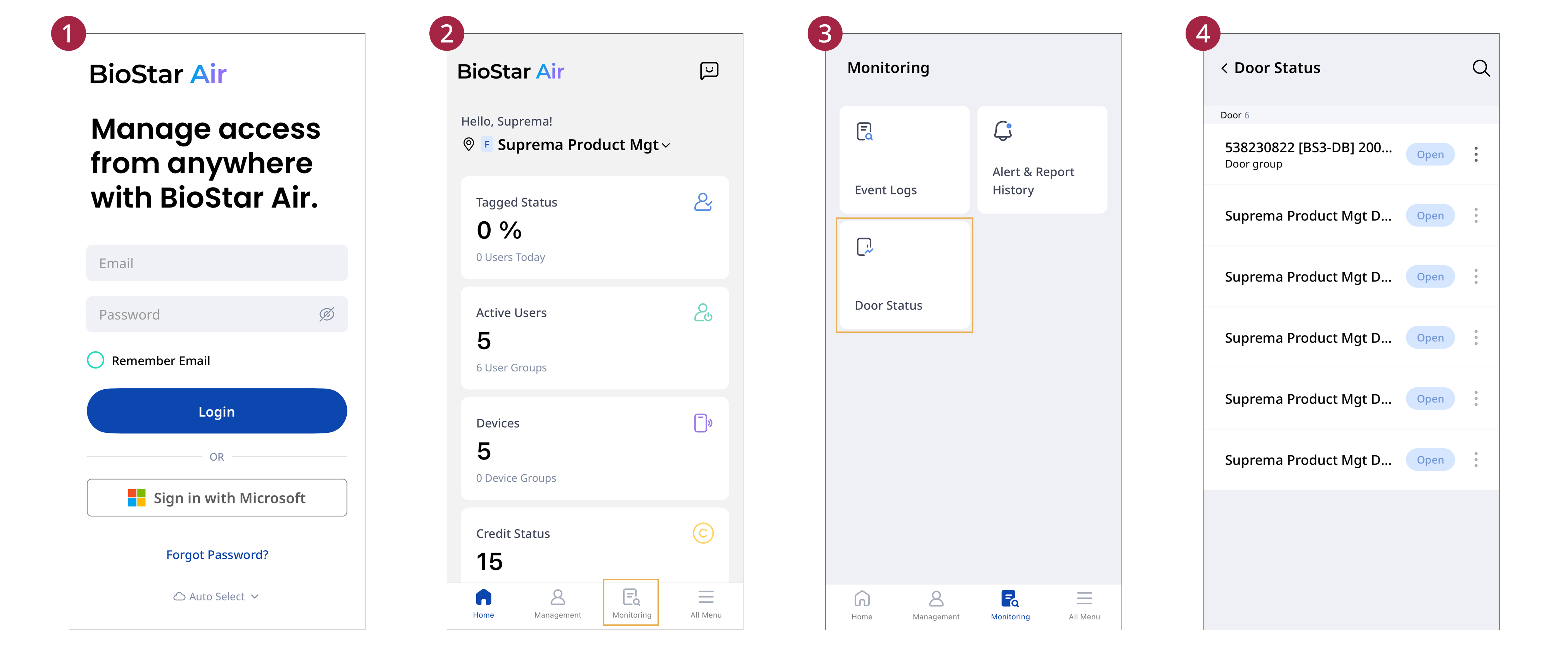

1. Open the BioStar Air app on your mobile device and log in.

2. Tap Monitoring at the bottom of the home screen.

3. Tap the Door Status card.

4. View the list of doors registered to BioStar Air.

Info

For more information on door registration and management, refer to Manage Registered Doors.

Door status indicators

Check the following items for each door.

• Relay: Indicates whether the door is locked or unlocked.

• Door Sensor: Indicates whether the door is physically open or closed.

Unlock a door

Unlock the door remotely when it is online and connected to BioStar Air.

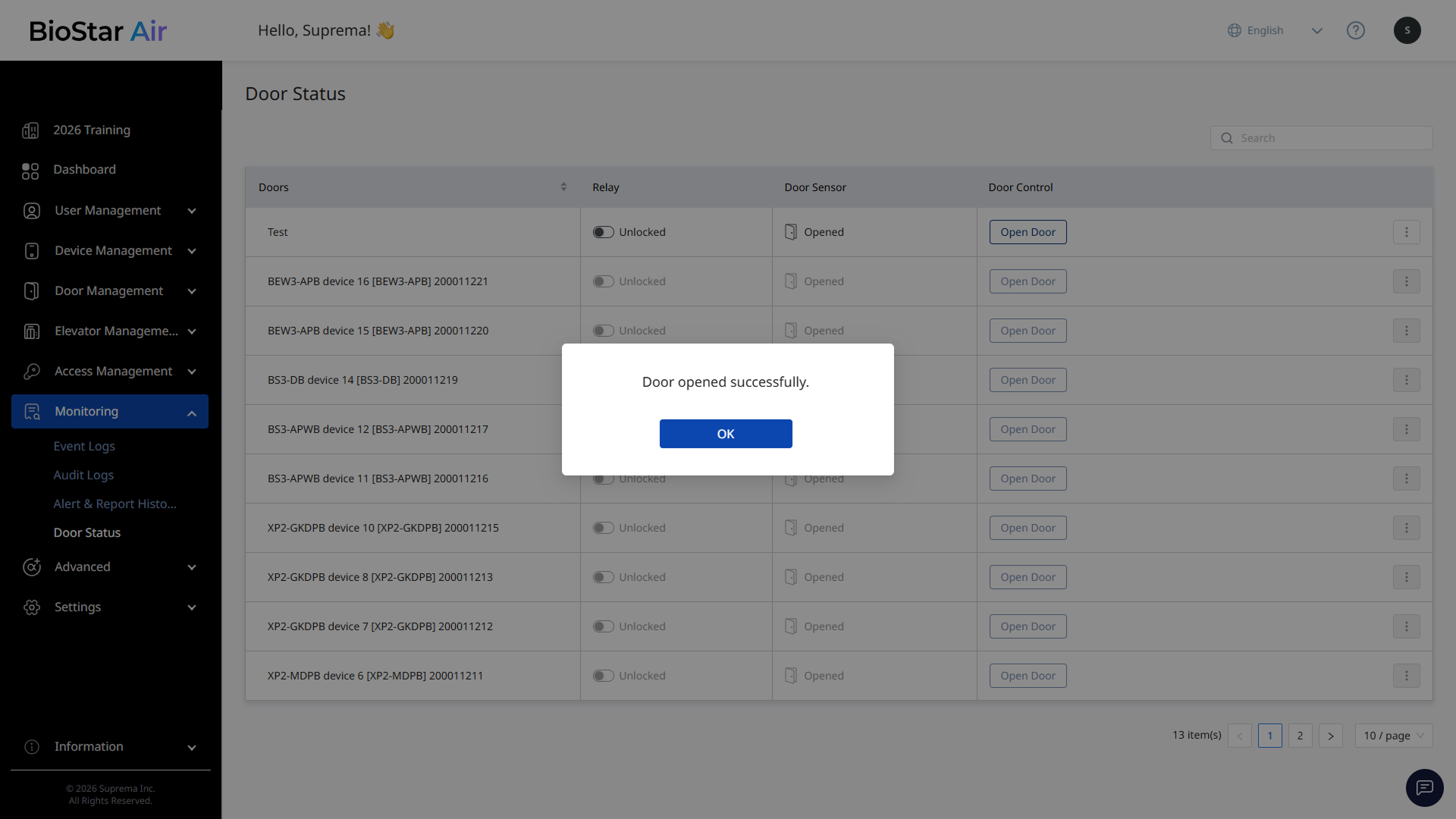

1. In the Door Control column, click Open Door.

2. The status in the Relay column changes to unlocked.

3. After the configured time elapses, the door returns to locked.

Info

For information on setting the duration that the door remains open, refer to Manage Registered Doors.

Set always-open mode

Keep a door unlocked indefinitely. Use this when temporary or visitor access is needed.

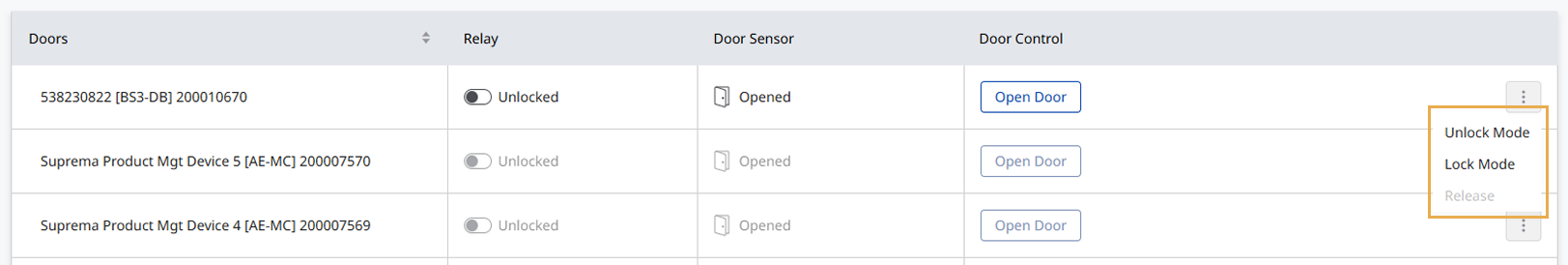

1. In the door list, click at the far right of the door to keep open.



2. Click Unlock Mode in the popup menu.

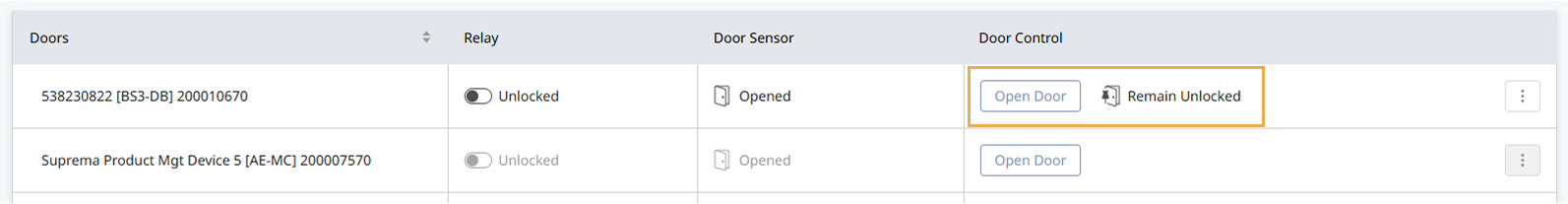

3. The status in the Door Control column changes to Remain Unlocked.

Click → Release to return to normal operation.

Set lock mode

Keep a door locked regardless of the current schedule. Use this when enhanced security is required.

1. In the door list, click at the far right of the door to keep locked.



2. Click Lock Mode in the pop-up menu.

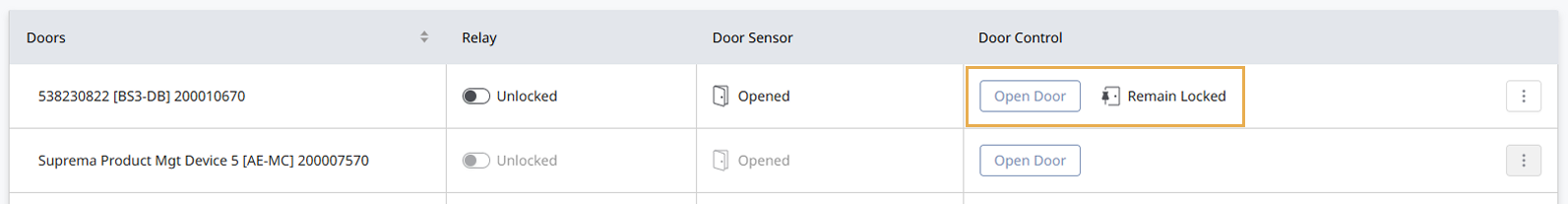

3. The status in the Door Control column changes to Remain Locked.

Click → Release to return to normal operation.

Control door access on mobile

If the door is connected to the network, the following actions are available.

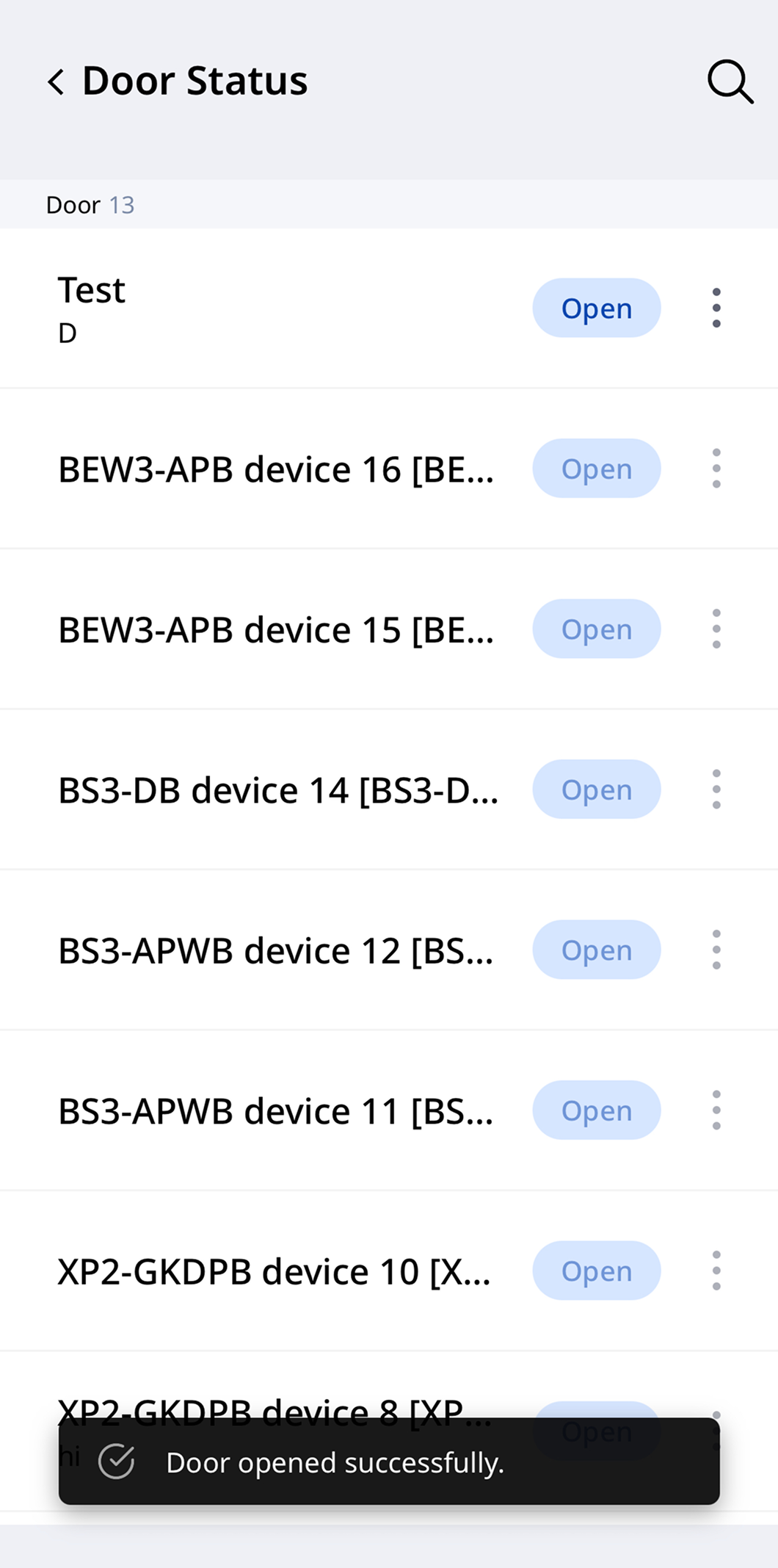

• Open Door: Unlock the door remotely.

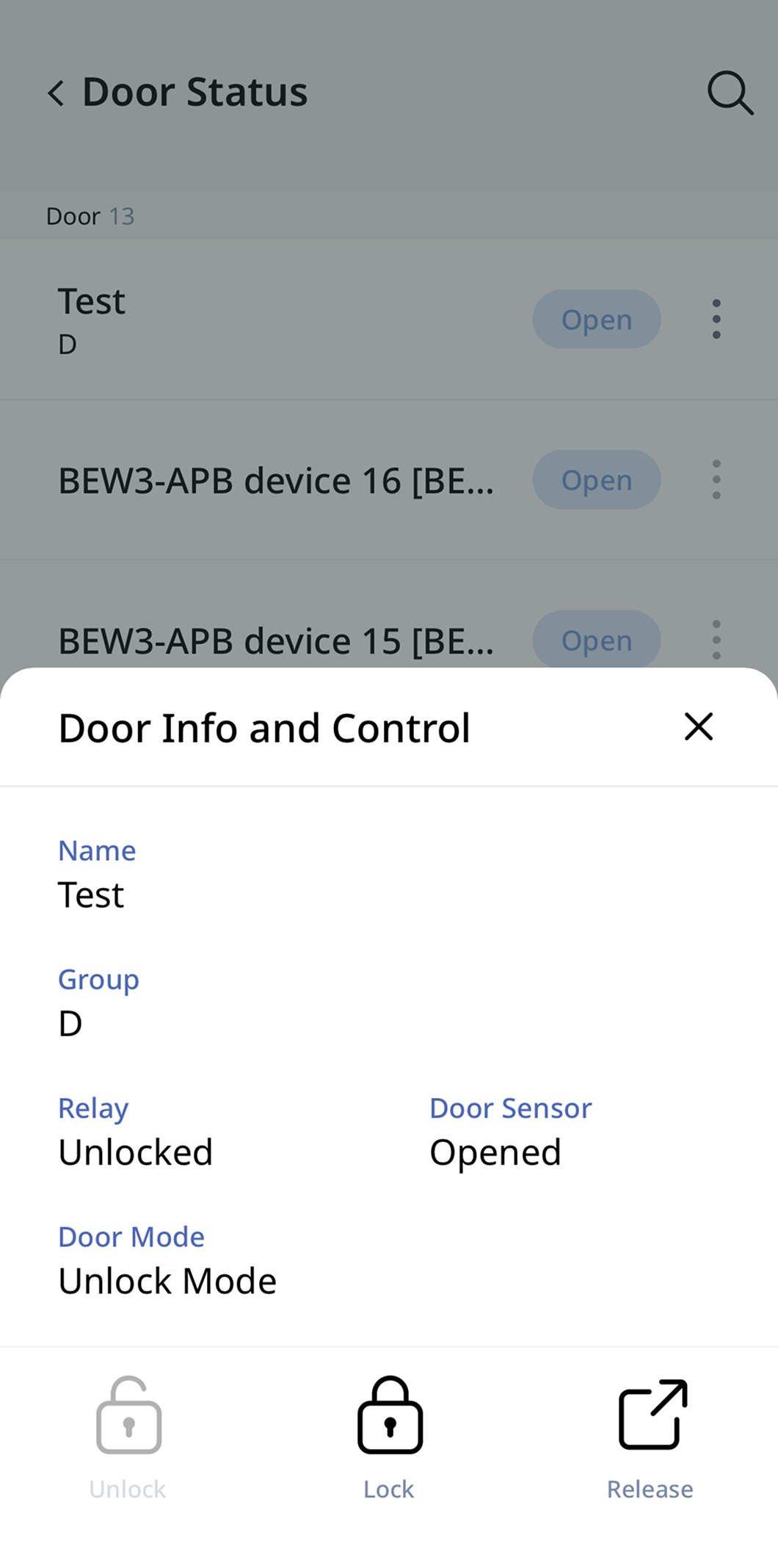

Tap at the far right of the door. Door Info and Control option appears.

• Unlock Mode / Lock Mode: Set the door to always-open or lock mode regardless of the schedule.

• Release: Release Unlock Mode or Lock Mode and return to normal operation.
