Installation

Minimum System Requirements

Item		Small Business Server	Medium Business Server	Enterprise Business Server
Environment	Total Devices	50	150	1000
System requirement	OS	Microsoft Windows 10 or later (64-bit)
	CPU	2 GHz dual-core	4 GHz quad-core	4 GHz, 16-core
	RAM	8 GB	16 GB	64 GB
	Communication	Supports the Standard Transmission Control Protocol (TCP/IP) networking communication protocol between servers, clients, and devices.
		Supports Dynamic Host Configuration Protocol (DHCP) or Static IP address.
		Supports network configuration.
		Supports Network Time Protocol (NTP).
		Supports HTTPS communication protected by Secure Socket Layer (SSL) between the client (web browser) and platform.
	Encryption	Supports AES-256 for Fingerprint Template, and Face Template.
		Supports AES-256 for Fingerprint Template and Face Template (Optional).

Plugin Installation

1. Run the installation file (setup.exe) as an administrator.

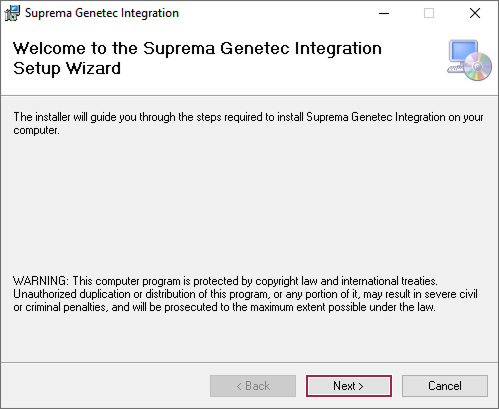

2. Click Next.

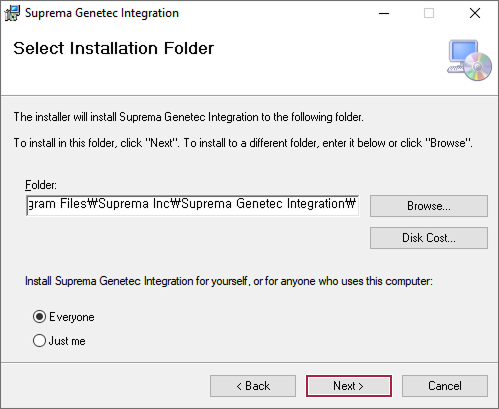

3. Set the path where Suprema Plugin will be installed, then click Next.

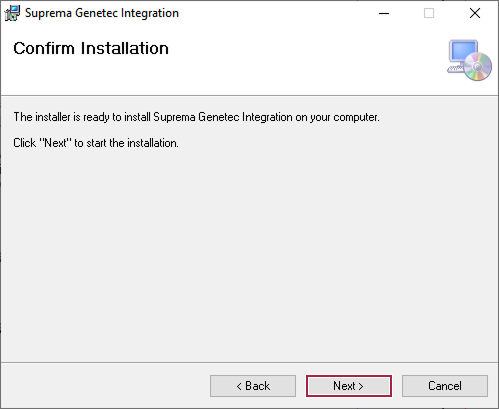

4. If the installation is ready, click Next.

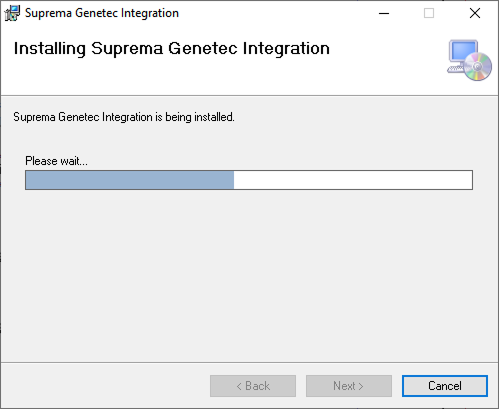

5. The installation will begin. Please wait until it completes successfully.

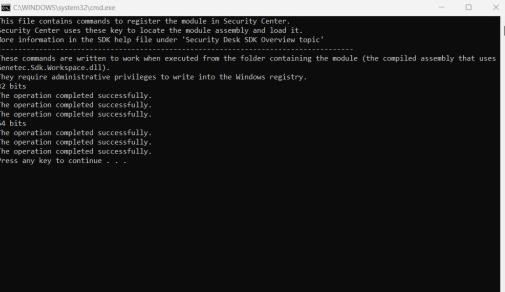

6. Once the installation is complete, a command prompt window will appear. Press any key to close the window.

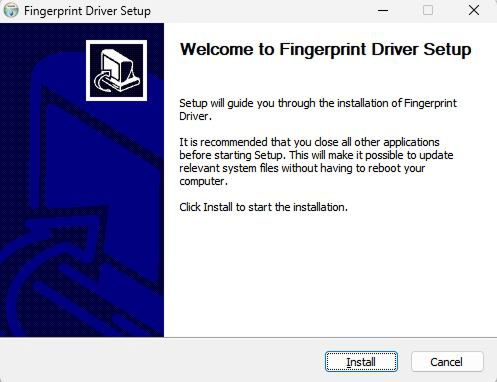

7. The Biomini Slim2 (Fingerprint Enrollment Device / USB type) driver installation will start. Click Install.

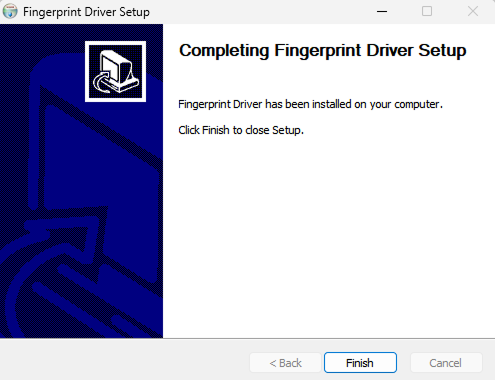

8. Click Finish.



9. Return to the Plugin installation windows and click Close.



10. Press Any Key to complete.



Added Suprema Plugin in Genetec Config Tool

1. Run the Genetec Config Tool.

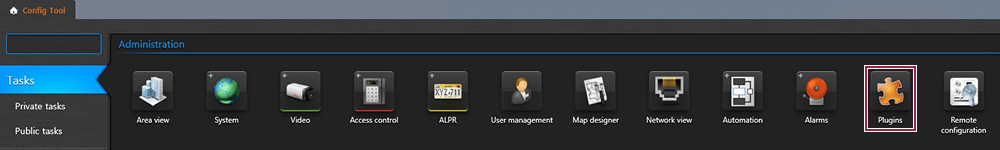

2. Click the Plugins under Tasks.



3. Click Add an entity under the Plugins screen, then select Plugin from the list.

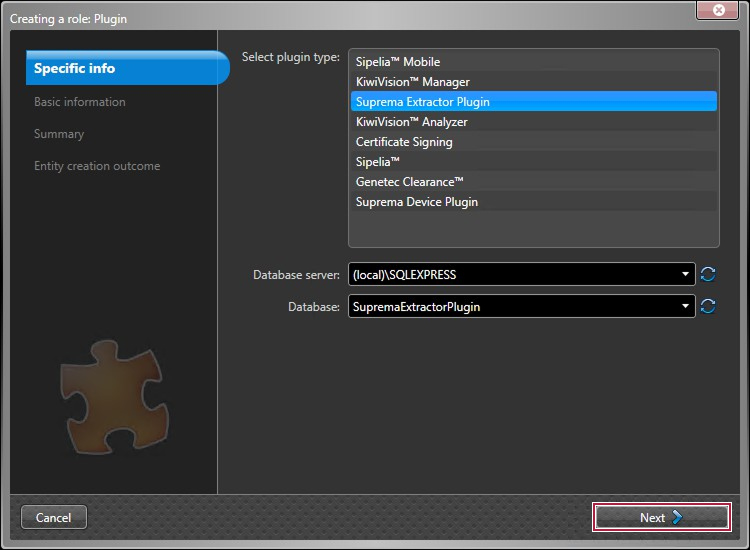

4. In Select plugin type, select Suprema Extractor Plugin and click Next.

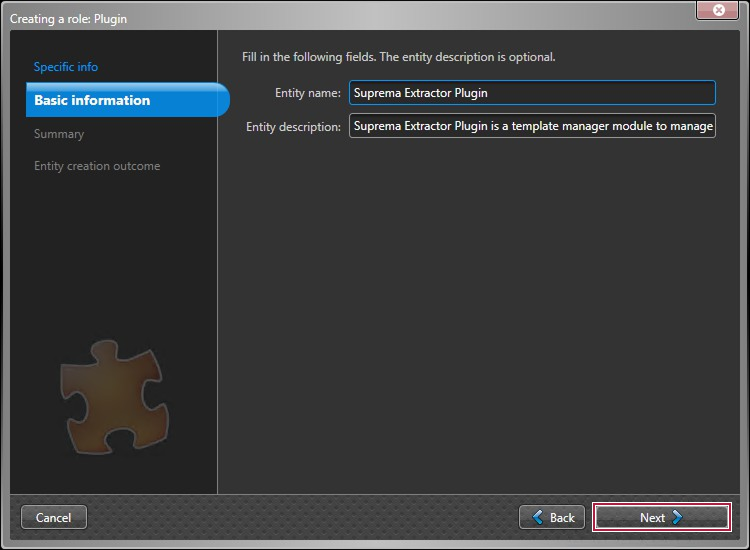

5. Enter the Entity name and Entity description, then click Next.



   情報

   The Entity description is optional.

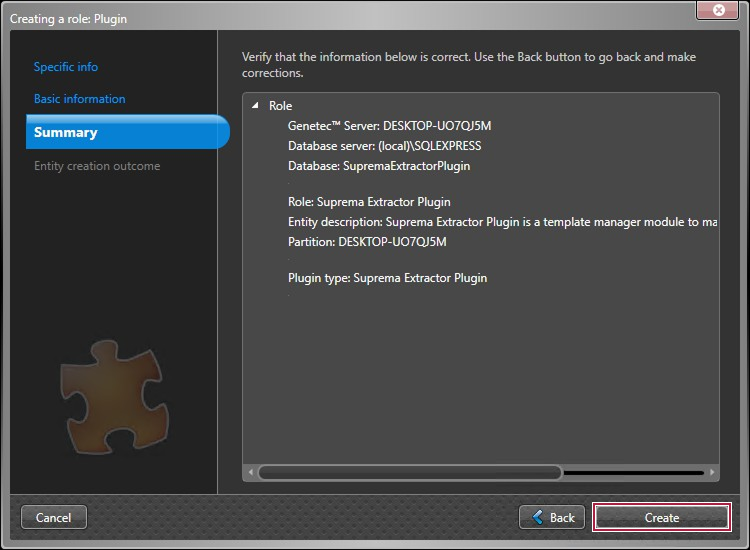

6. Verify the information and click Create.



7. The Suprema Extractor Plugin will be created. Click Close.



8. Click Add an entity under Plugins screen, then select Plugin from the list.

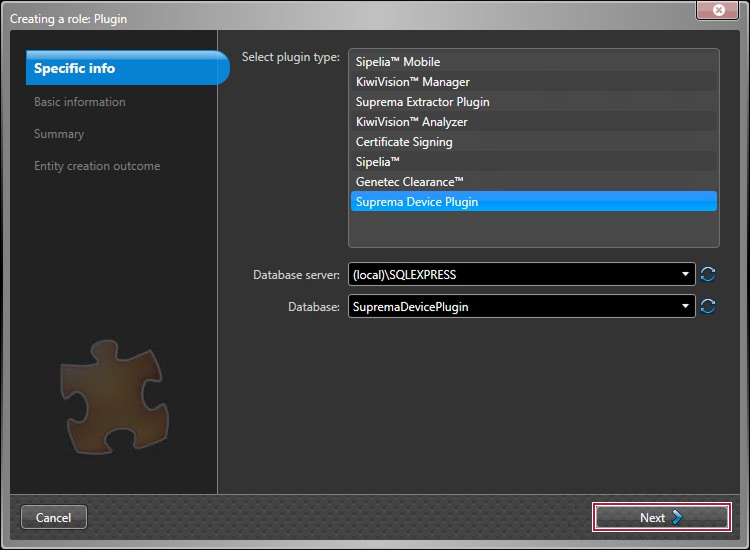

9. In Select plugin type, select Suprema Device Plugin and click Next.



10. Enter the Entity name and Entity description, then click Next.



    情報

    The Entity description is optional.

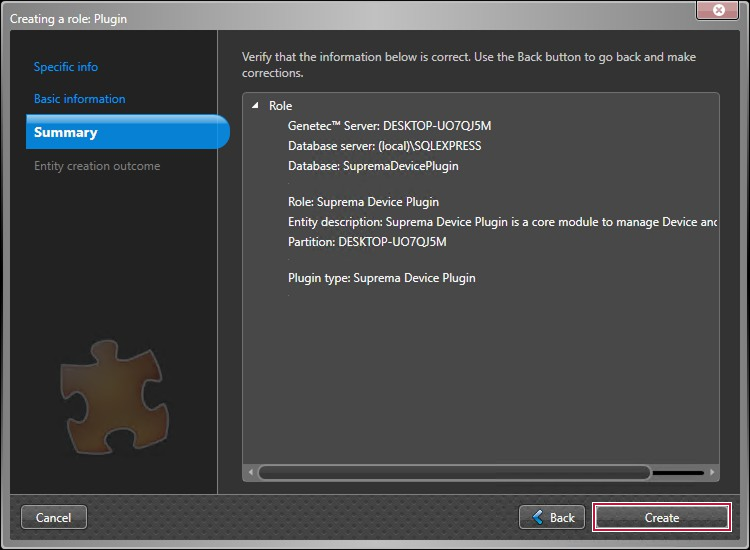

11. Verify the information and click Create.



12. The Suprema Device Plugin will be created. Click Close.



13. The addition of the Suprema Plugin is complete.
